MPC-200C1 KIT 1-4 Acre RP Aeration Kit

MPC-200C1 KIT 1-4 Acre RP Aeration Kit

$2,099.00
SKU 67729
Qty:



3/4 Hp Rocking Piston Compressor




1-4 Acre RP Aeration Kit

Product Highlights

This is our complete aeration package for lakes up to 4 acre.

Includes:
•MPC-200C1; 3/4 HP Rocking Piston Compressor with oil filled pressure gauge and pressure releif valve, 3 way valve manifold, cooling fan, GFI outlet, all inside the protective locking cabinet.
•300 feet of 3/8" heavy duty sink air hose.
•Three double air bases with 9" air disc diffusers, (3 x MDB 22)

These systems can be customized to meet your requirements.

Price $ 2099.00



3/4 Hp Rocking Piston Compressor



MPC-200A

3/4 HP Rocking Piston Compressor double head with air filter only. This stand alone compressor can be installed in a variety of applications. Adapt to your existing system or create a custom system. For aerating ponds up to 4 acres.

Air Flow LPM / CFM-211 / 7.45

Features and Benefits

  • 3/4 HP; 115 volts; 60 Hz
  • Optional 230 volt versions available at no extra charge
  • Max amps 5.4 @115Volts; 597 watts.
  • Max pressure 50 feet deep or 17.34 psi.
  • Oil-less non-lube piston and cylinder.
  • Cylinder hard coated for wear resistance.
  • Head design allows for easy replacement of piston seal.
  • Permanently lubricated bearings.
  • Balanced for smooth, low vibration operation.
  • Safety Protected.







3/4 Hp Rocking Piston Compressor With With Manifold and Pressure Guage

MPC-200C

MPC-200C

This is the 3/4 HP compressor and air filter (MPC-200A) combined with a 3 or a 4 way heavy duty manifold. The 3 way manifold is a standard.

The manifold includes an oil filled pressure gauge to reduce indicator vibration. This gives a more accurate reading of the actual psi of your system. Also attached is a pressure relief valve which opens at approximately 17 psi to prevent damage to the compressor. The gang valves are high quality brass with 3/8" barbs connectors. A short section of heat resistant hose is included so as to reduce heat to your air hose connection. All high quality components and very nice design.

This is a stand alone unit without any cabinet which is ready to install in your new or existing aeration system. The Matala Piston Compressor with air manifold is ideal as a replacement compressor for a variety of different manufacturer systems.

Features and Benefits

  • 4 way 3/8" manifold valve.
  • Oil filled pressure gauge
  • Pressure relief valve
  • Heat protection hose.

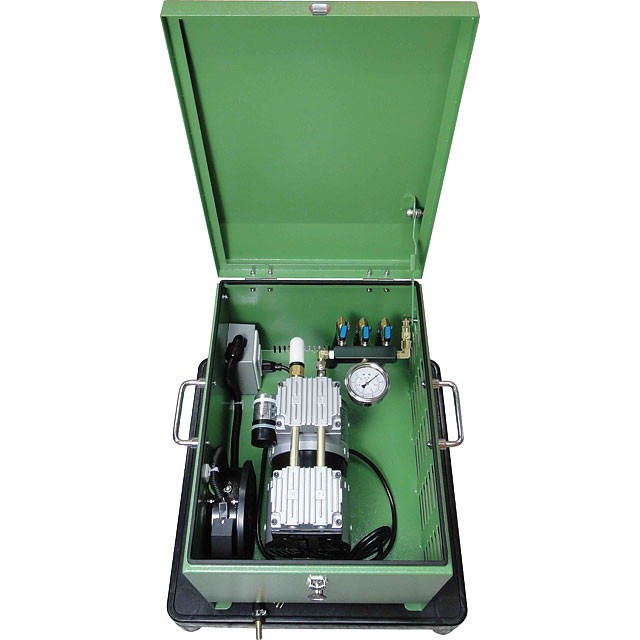

3/4 Hp Rocking Piston Compressor With Cabinet

MPC-200C1

3/4 HP Rocking Piston Compressor Complete (MPC-200C) with Cabinet.

This complete Matala aeration system includes all the features of our MPC-200C and it is built into a heavy duty cabinet. The locking cabinet is landscape green color and designed for outdoor extreme weather conditions. The cabinet stands on a solid support base to maintain a level installation. Within the cabinet we have added a cooling fan with cross flow ventilation. The compressor plugs into a built in GFI outlet. All components are protected within. The heat protection hose leads externally and all you have to do is connect your air hose. Very simple to install and operate.

The cabinet should be located above pond water level and flood zone and within 50 feet of the shore. Do not bury.

Features and Benefits

  • 3/4 HP compressor with 4 way manifold system (MPC-200C).
  • Full locking metal cabinet, landscape green color.
  • Support Base.
  • Built in GFI outlet.
  • Cross flow ventilation fan.
  • Easy install and operation.
  • Heavy weather resistant.
